SMART ID CARD

The TIMATE card - equipped with the ePaper screen and enabling two-way radio communication.

The cards are handed out to all employees. They carry the card as a regular employee ID.
Specification sheet of the C2 card
Watch a video




Three card types for various tasks

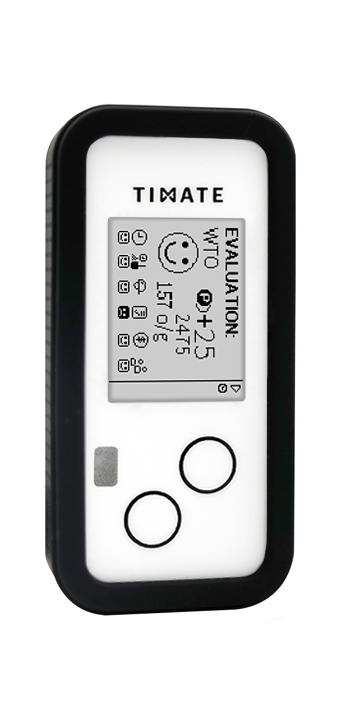

SMART ID CARD C2

The C2 card for logistics and manufacturing:

Resistant and light

The ABS IP4x housing, a protective silicon case and a strap with a securing feature.

Top-level energy saving

Up to 6 months on one CR2032 battery. A remote battery measurement and easy replacement.

Wireless

A two-way transmission via the MESH radio network (2.4GHz IEEE 802.15.4) with a range up to 50 m. the card cooperates with the CT-ET main unitCT-ET.

Show in 3D
RResponsive

The ePaper screen (1.4”) readable in all conditions, with the resolution of 128x96 pixels, and two buttons, an RGB LED and a piezo buzzer.

Equipped with sensors

Only a few indispensable sensors: motions, temperature and light.

Easy to use

A clear menu for the employee in two variants (easy and advanced) providing information about the working time, schedules, tasks, messages, weather and other.

The TIMATE card - IoT in practice

A smart self-operating card for every employee

Broad functionality

The card has built-in functions for supporting the employee ID, recording of the working time , remote work, assessment and motivation, detection of abuses, detection of accidents, calling for help, sending and receiving messages taskprocessing, weather forecast and more.

Self-operating and automatic

The card measures the working time automatically and it does not require the use of readers. It automatically displays the employee ID data at the workplace. Cards are remotely updated with the working schedule, tasks, firmware and other data. The card cooperates with the TIMATE system by communicatin with the CT-ET main unitsCT-ET.

A dedicated mobile Web application

The card uses NFC to cooperate with the Web application on the smartphone, providing extended information about the working time. No need to install anything on the smartphone, it is enough to put the card against the NFC reader in the smartphone.

Secure

No camera, no microphone, no biometric readers, no GPS. The card does not breach employee privacy. The card encrypts its transmission with the AES-128 algorithm. The card does not function as a pendrive and it cannot carry data. It meets the RED standards and it is safe to use.

Equipped with the NFC tag

The C2 and C3 card has a remotely programmable NFC tag. The tag enables easy access to the WWW panel on the smartphone screen with information about the working time. It can be integrated with the access control on the company premises.

It eliminates the need for a company smartphone

The card causes no distraction at work. It has a simple menu on the ePaper screen. It provides no access to the Internet or the social media. The card enables receiving messages and working with a list of tasks assigned by the employer, so it can replace smartphones in logistics and manufacturing sectors.

A new patented technology

TIMATE cards are safe

No cameras
No biometrics
No GPS
No microphones

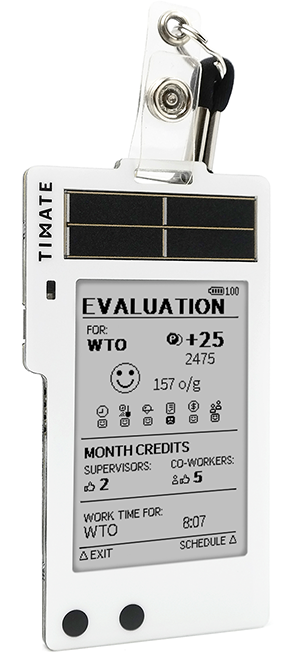

SMART ID CARD C3

The C3 card for office work and light industry:

Ultra thin

An unopenable casing only 4.8mm thick, equipped with a strap and a securing feature.

Power by light energy or a battery

It has a solar battery and NiMH rechargeable batteries as well as the Energy Harvesting module. Charged with light or via USB. Continuous operation with mixed external and office lighting. Up to 5 days without light. A version of this card powered by the CR2032 battery is also available.

Wireless

A two-way transmission via the MESH radio network (2.4GHz IEEE 802.15.4) with a range up to 50 m. the card cooperates with the CT-ET main units.

Show in 3D
Responsive

The ePaper screen (2.7”) readable in all conditions, with the resolution of 264x176 pixels, and two buttons, an RGB LED and a piezo buzzer.

Equipped with sensors

Only a few indispensable sensors: motions, temperature and light.

Easy to use

A clear menu for employees with the option to display larger amounts of data for messages, task lists, information about the working time, schedules, weather and more.

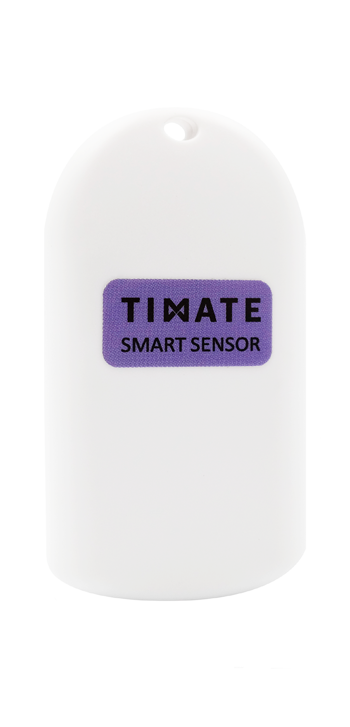

SMART SENSOR C1

The C1 card for operation as a card or a sensor on personal protective equipment, items and machines

Very small

Casing – a small chain with a strap and a securing feature or a PCB (23x35mm) for integration with personal protective equipment or objects.

Top-level energy saving

Up to 8 months on one CR2032 battery. A remote battery measurement and easy replacement.

Wireless

A two-way transmission via the MESH radio network (2.4GHz IEEE 802.15.4) with a range up to 50 m. the card cooperates with the CT-ET main units.

Show in 3D
Minimalistic

No screen, only the RGB LED and the piezo buzzer.

Equipped with sensors

Only a few indispensable sensors: motions, temperature and light.

A smart sensor

The C1 card can be fixed on objects, devices, vehicles and personal protective equipment and it can also function as an additional sensor for monitoring motion or temperature.

Download specification sheets with basic parameters of TIMATE cards

Card C1 Card C2 Card C3
